12V/24V RGB/RGBW touch panel controller

Product Introduction:

• TM09 RGBW touch panel controller adopts the latest capacitive touch technology and wireless technology to develop a new generation of intelligent colorful RGBW controller;
• lUsing a stable wireless and capacitive touch mode, only need to lightly touch the corresponding button with your finger to achieve long-distance, non-directional color control;
• l Color selection, mode conversion, brightness and speed adjustment and other related functions can be performed;
• lThe product can adapt to various constant voltage 12V/24V RGBW or RGB lamps, such as 5050RGBW/RGB led strips, rigid strips, flexible strips, modules, etc.

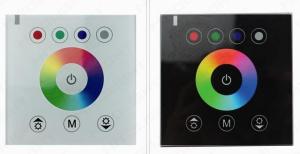

White and Black case for optional

Input Voltage: DC12-24V
Output current: 16A
Output: 4 channels
Power consumption: <1W
Output power: 12V<192W, 24V<384W
Product Size: L86*W86*H36mm

How to install it?

Step 1: Use a "one" screwdriver to gently pry at the notch on the back of the touch controller, and slowly move the panel.

Step 2: Slowly push the button of the terminal block and remove either end of the cable. Removing the cable here is just to facilitate the next arrangement.

Step 3: Fix the bottom shell of the controller with screws in the 86*86 installation box on the wall. (The installation box needs to be purchased by yourself)

Step 4: Reinsert the ribbon cable removed in step 2 back into the ribbon socket, press the lock buckle to hit the panel ribbon cable to the bottom case, and the installation is complete.
